New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables

New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables

Großes Bild :  New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables

Produktdetails:
Herkunftsort: China Kunshan
Markenname: FUCHUAN
Zertifizierung: CE
Modellnummer: FC-6523D
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: negotiable
Verpackung Informationen: Einfache Verpackung
Lieferzeit: 45 Tage
Zahlungsbedingungen: T/T, L/C
Versorgungsmaterial-Fähigkeit: 500 Sätze pro Monat
Kontakt

New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables

Beschreibung
Verwendung: Verdrehen, Verseilen, Paarverdrillung von Kerndrähten aus Cat5e, Cat6e, wodurch 7 Litzen oder mehrad Farbe: Nach Kundenanforderung
Name: Doppeldrehmaschine Gewicht: 3000 kg
Stromspannung: 380 V 50/60 Hz Material: Kupfer, Aluminium
Hervorheben:

high speed twisting bunching machine

,

bare copper cable stranding machine

,

aluminium cable winding making machine

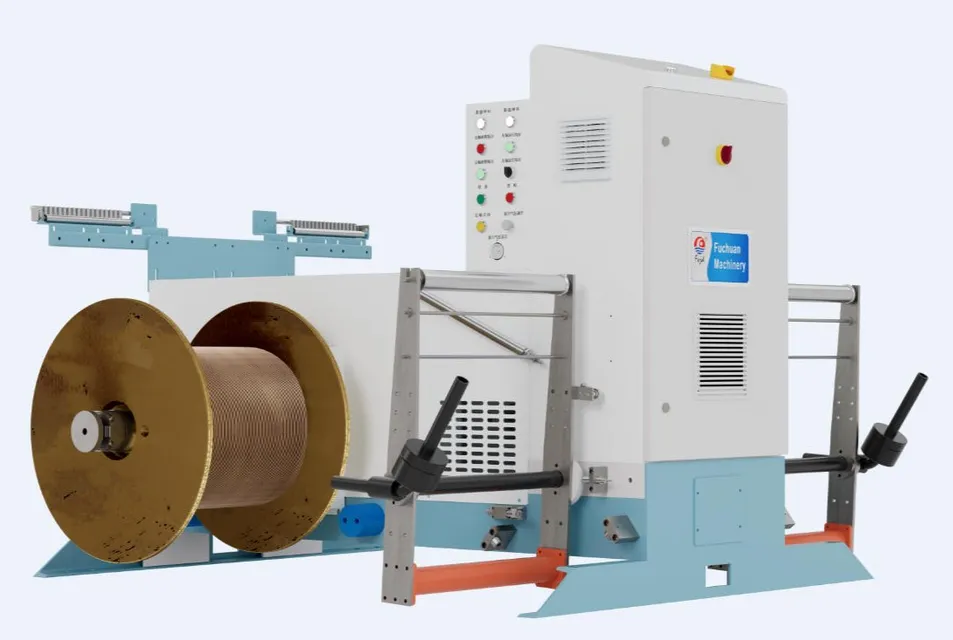

Product Description

high-performance bunching machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects. Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation. Suitable for stranding conductors such as bare copper wire, tinned wire and aluminum alloy wire, which are used in automotive wire, electronic wire and power cord.
Specification
Features
1.IoT access: Ethernet ports are reserved for loT access, which can display rotation speed, stranding specifications, wire speed, output, equipement maintenance, etc.
2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.
3. Electronic control pitch: can set the pitch value on the PLC panel.
4. Take-up tension control: AC frequency conversion motor drives take-up.
5. Internal precision traverse: stepper motor + precision ballscrew traverse, through PLC precise calculation, guarantee the wiring accuracy.
6. Laser detection (optional): Suitable for high demanding stranding production situations, automatic detection of rows of wires to the edge.
7. Electric lifting system: self-locking, high positioning accuracy, easy to operate to load and unload the spool.
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables 0



 Technical Specifications

(Custom configurations available upon request.)
Model
FC-652D
FC-653D
FC-654D
FC-802C
FC-803C
Wire dia. (mm)
Φ0.12-0.45
Φ0.12-0.68
Φ0.12-0.68
Φ0.15-1.35
Φ0.15-1.35
Cross section (mm2 )
0.35-4.0
0.35-6.0
0.35-6.0
1.0-16.0
1.0-16.0
Pitch (mm)
10-100
10-100
6.5-75
20-160
20-160
Pitch adjusting method
PLC control
PLC control
Manual
PLC control
PLC control
Spool size(mm)
Φ500-630
Φ500-630
Φ500-630
Φ630-800
Φ630-800
Max speed (rpm)
2600
2600
2600
1800
1800
Total power
15KW
15KW
15KW
18.5KW
18.5KW
Stranding direction
S/Z
S/Z
S/Z
S/Z
S/Z
Overall Size(mm)
3650*2000*2200
4600*2100*2200

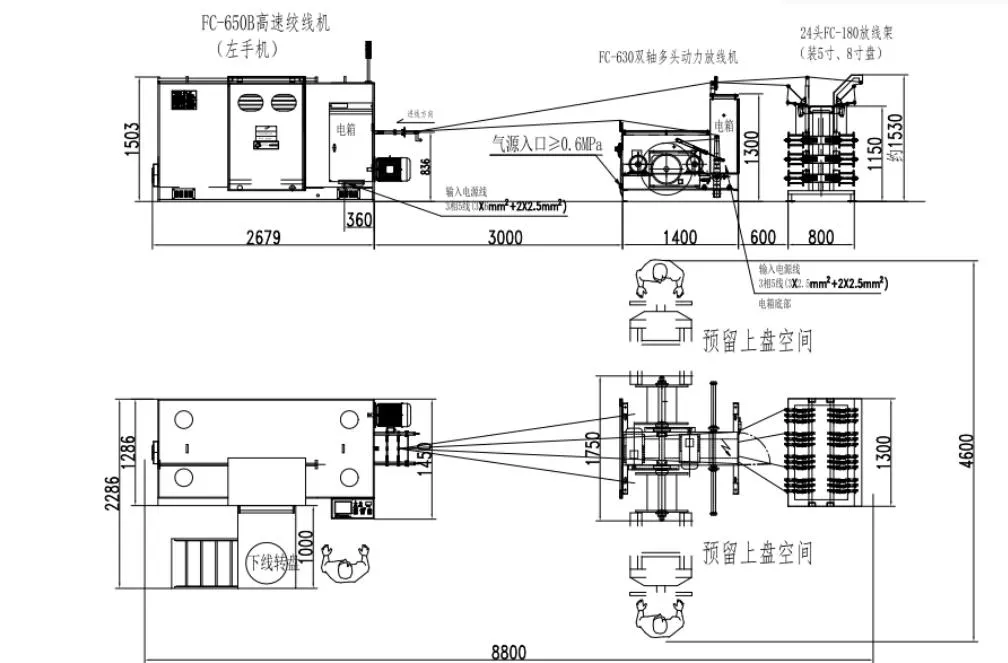

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables 1
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

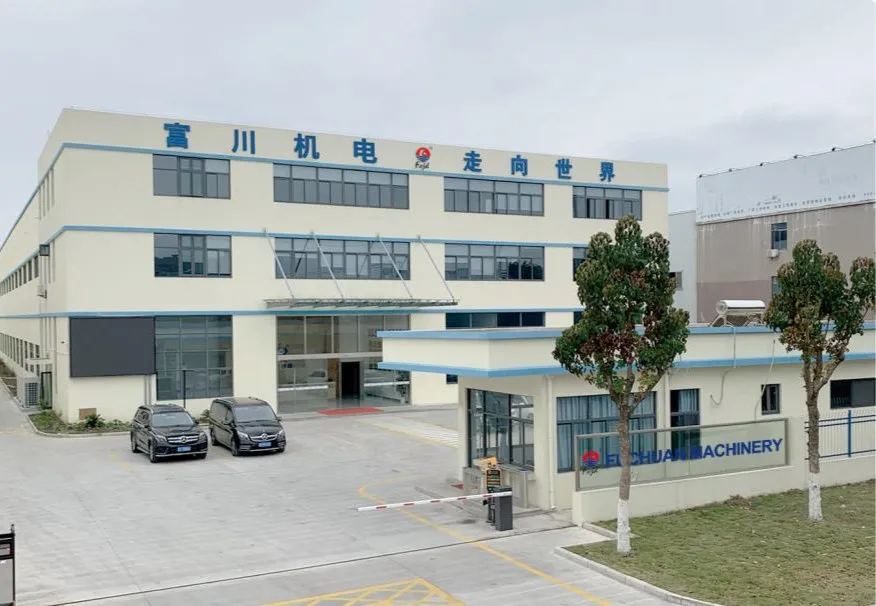

Company Profile
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables 2
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables 3
New Type 0.12-0.68mm High Speed Twisting Bunching Stranding Making Machine Winding Making Machine for Bare Copper and Aluminium Cables 4
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
